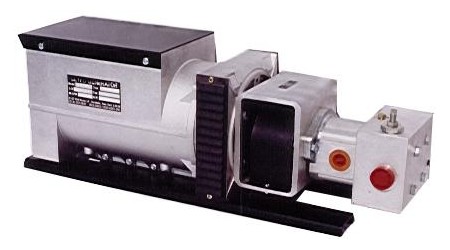

HYDRO-MAX 10K-36
HYDRAULICALLY-DRIVEN
AC GENERATOR
BY
120 / 240
V 60 Hz
10,000 Watts
1 Phase


QUALITY FEATURES
Brushless AC Generator  Includes Pressure Compensating Flow Regulator
Maintenance Free Design  Lifetime Guaranteed Alignment
SPECIFICATIONS
Flow  19 GPM  Volts  120 or 120 / 240
Pressure  2000 PSI  Amps  84 @ 120 V
Speed  3600 RPM  Watts  10,000 Continuous
Weight  121 Lbs  Power Factor  1.0
Dimensions (inches)  8W*10H*28L  Temperature Rating  105 C

FERNDALE, NY 12734

(845) 292-0800
http://www.geteck.com
