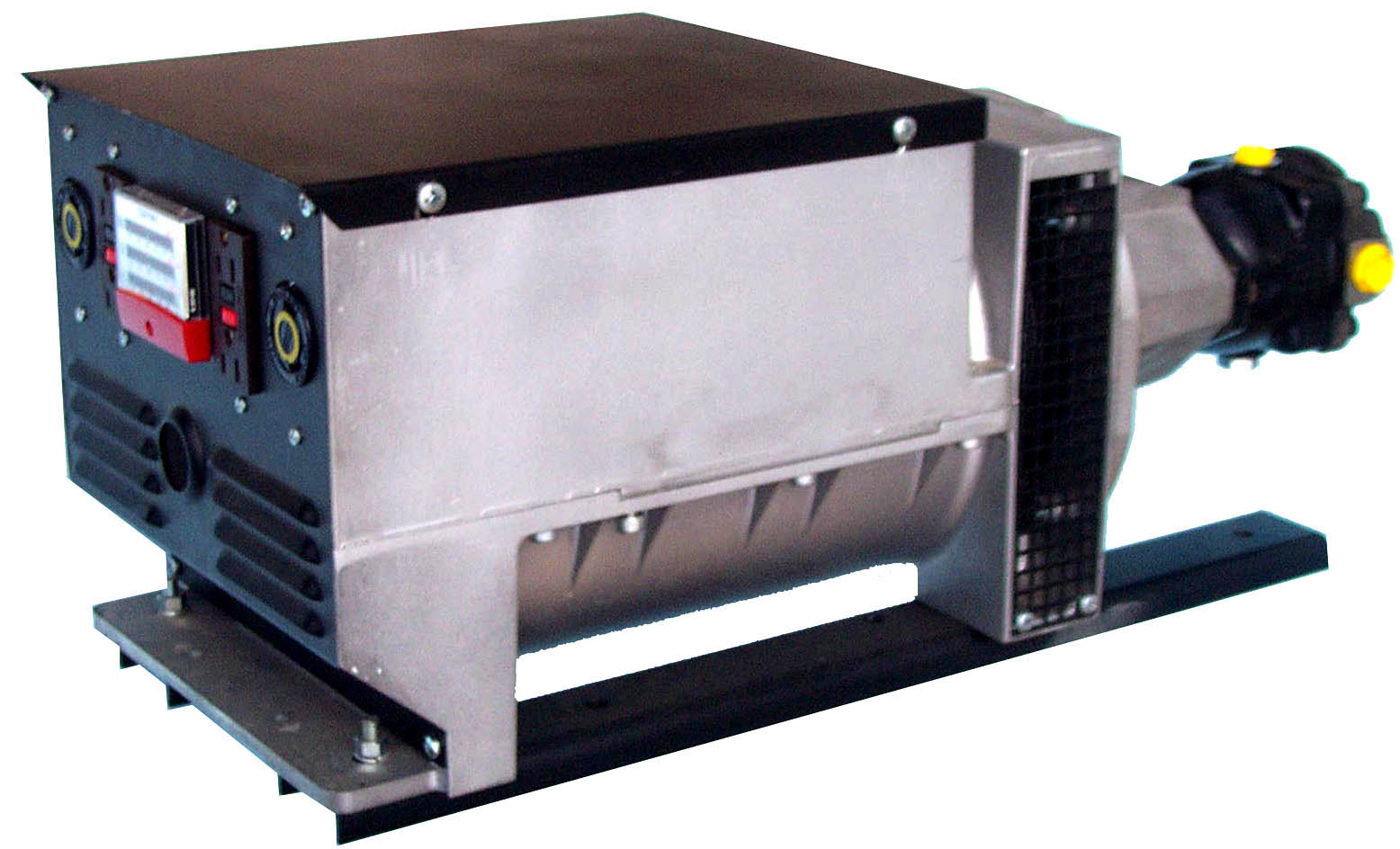

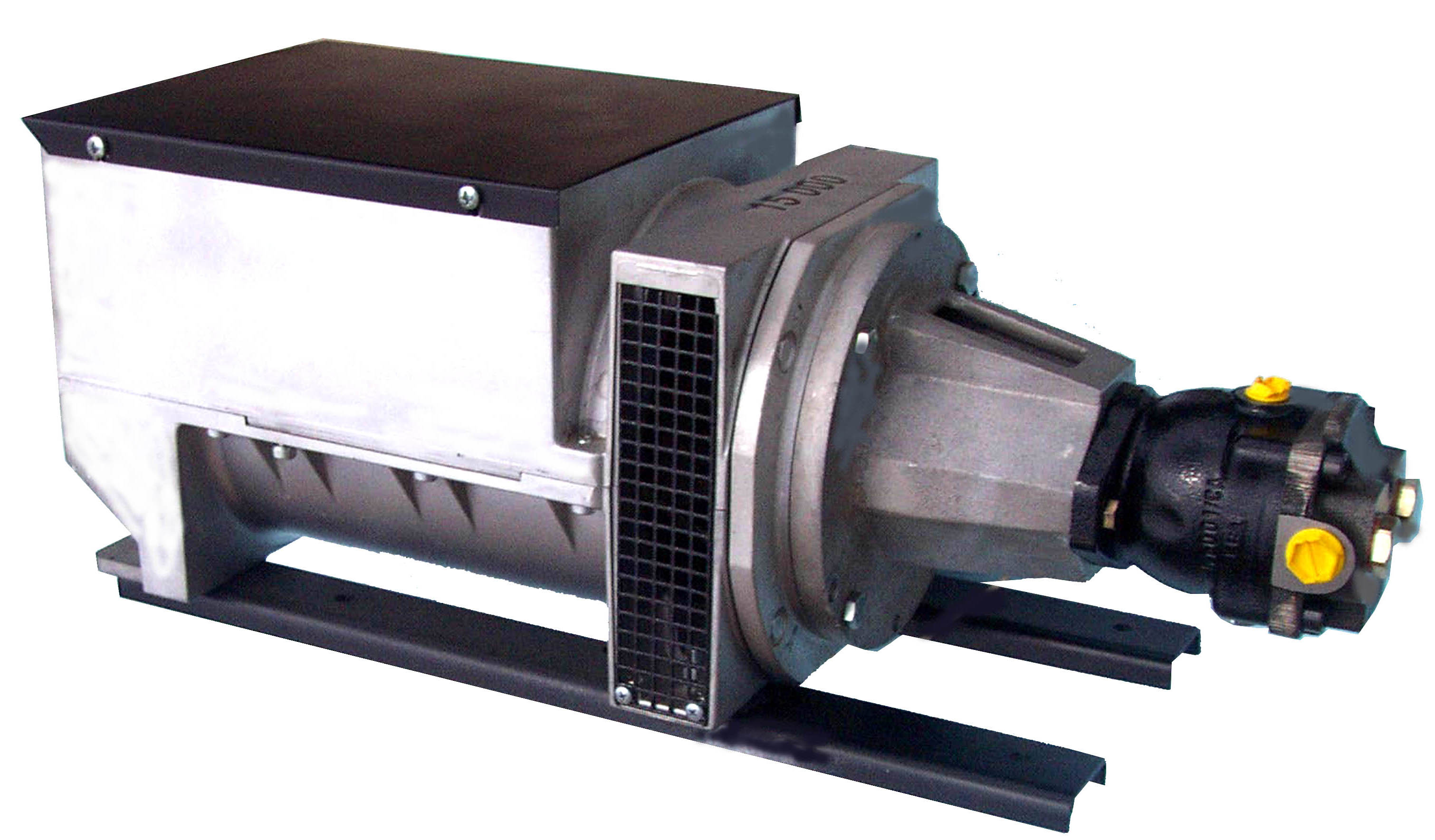

HYDRO-MAX P1200

HYDRAULICALLY PISTON MOTOR DRIVEN  AC GENERATOR  BY

120 / 240  V 60 Hz

12,000 Watts  1 Phase






QUALITY FEATURES
Brushless AC Generator	Includes Pressure Compensating Flow Regulator
Maintenance Free Design	Lifetime Guaranteed Alignment

SPECIFICATIONS
Flow	= 20 GPM	Volts	= 120 or 120 / 240
Pressure	=2000 PSI	Amps	= 100 @ 120 V
Speed	= 3600 RPM	Watts	= 12,000 Continuous
Weight	= 133 Lbs	Power Factor	= 1.0
Dimensions (inches)	= 11W*11H*29L	Temperature Rating	= 105 C

FERNDALE, NY 12734

(845) 292-0800  http://www.geteck.com/
