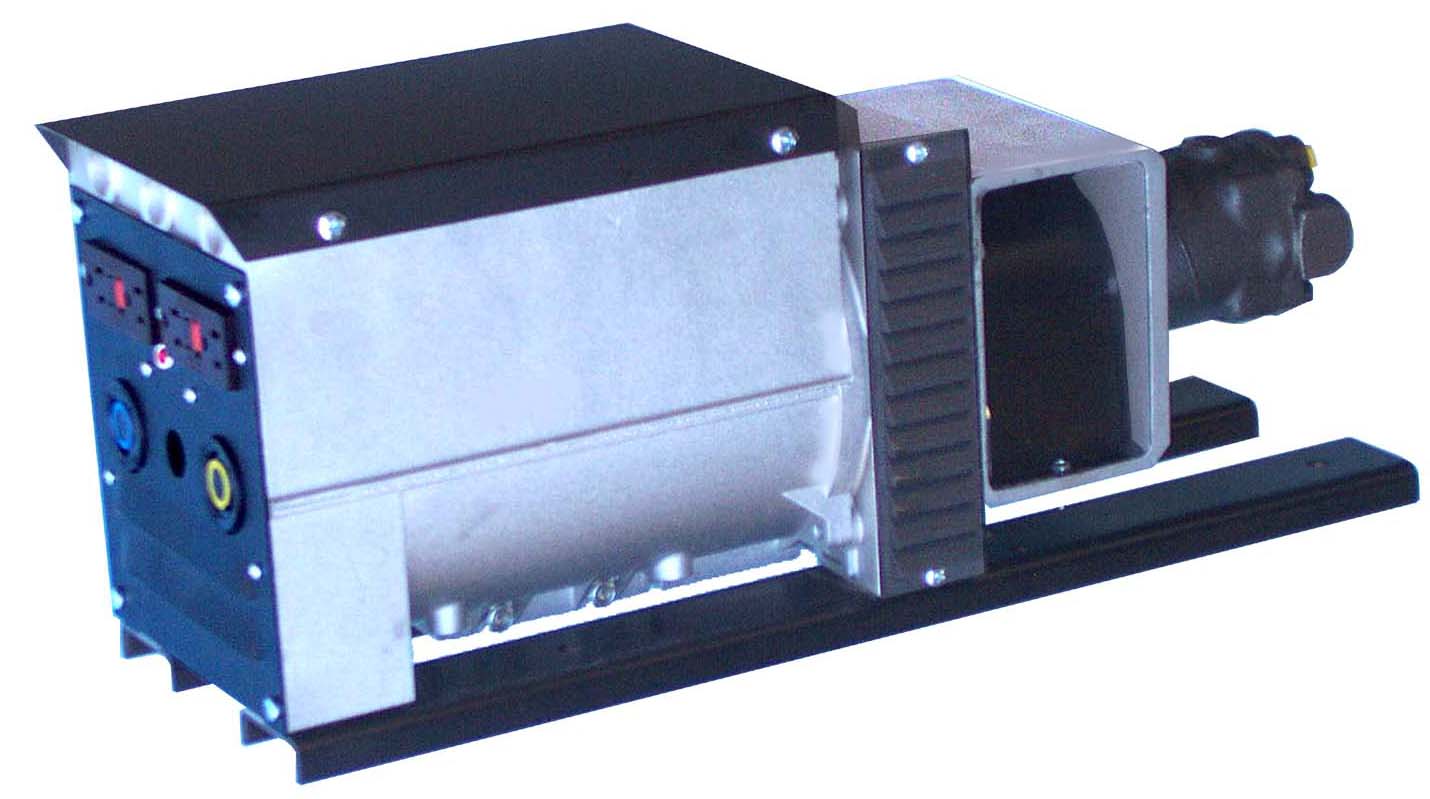

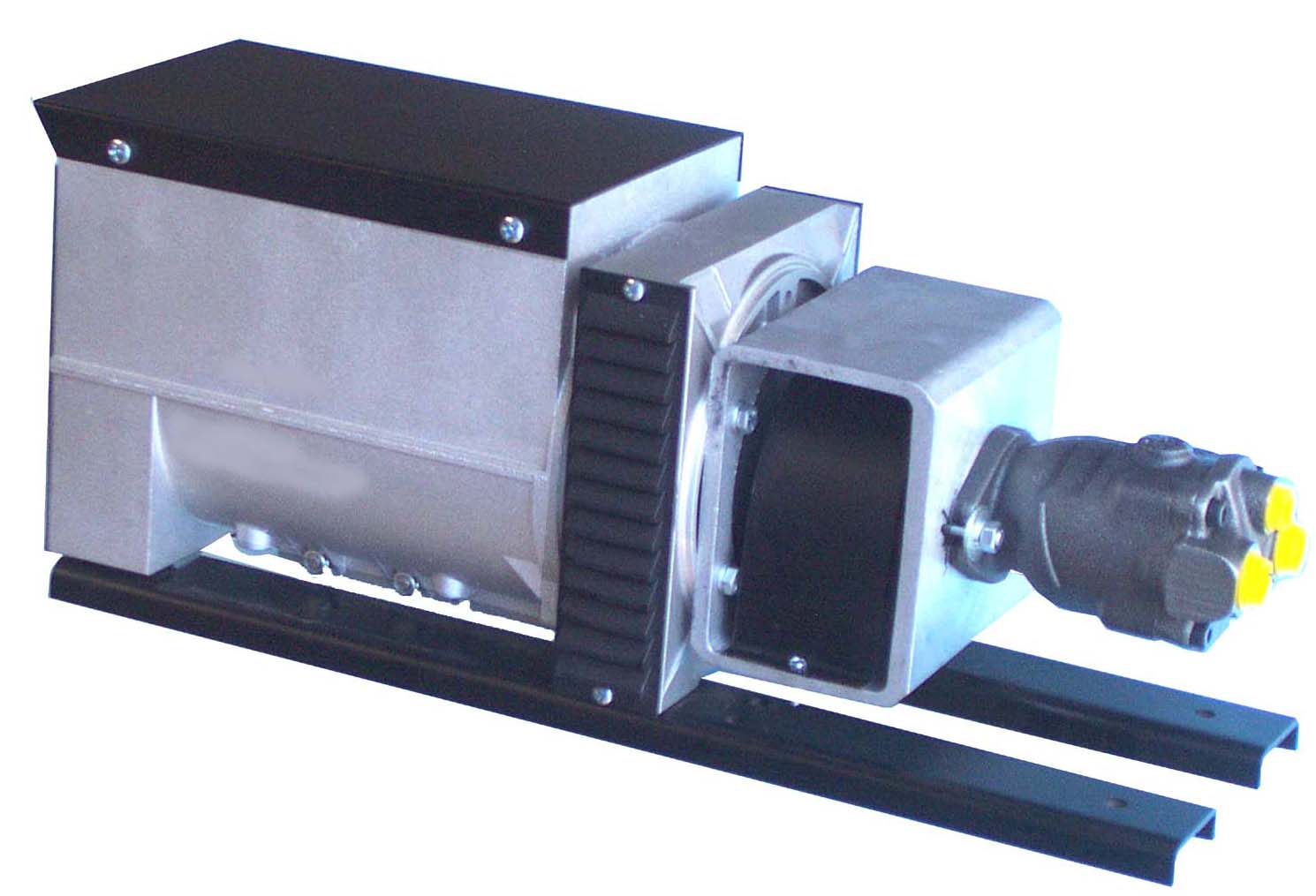

HYDRO-MAX P400

HYDRAULICALLY PISTON MOTOR DRIVEN  AC GENERATOR  BY

120 / 240  V 60 Hz

4,000 Watts  1 Phase






QUALITY FEATURES
Brushless AC Generator	Includes Pressure Compensating Flow Regulator
Maintenance Free Design	Lifetime Guaranteed Alignment

SPECIFICATIONS
Flow	= 7 GPM	Volts	= 120 or 120 / 240
Pressure	=2000 PSI	Amps	= 34 @ 120 V
Speed	= 3600 RPM	Watts	= 4,000 Continuous
Weight	= 85 Lbs	Power Factor	= 1.0
Dimensions (inches)	= 7.5W*10H*23.5L	Temperature Rating	= 105 C

FERNDALE, NY 12734

(845) 292-0800  http://www.geteck.com/
